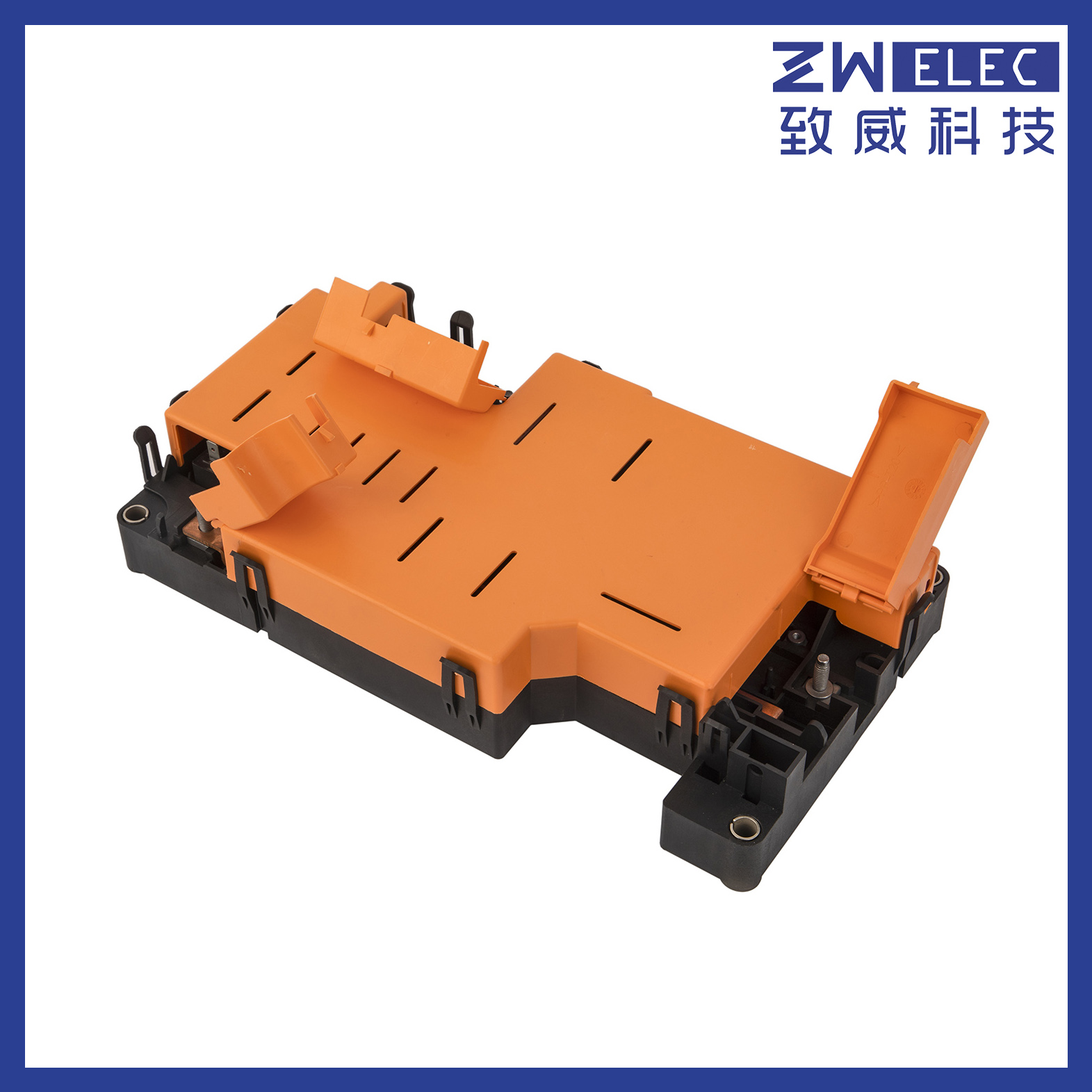

Custom Middle Size Vehicle PDU

Product Description

Middle Size PDU

            1、 Product Material :

                               Main housing: PBT-GF30 V0

                               Waterproof plate: PBT-GF30 V0

                               Main fuse holder: PBT-GF30 V0

                               BDBS fixing plate:PBT-GF30 V0

                               Cover:PA66-GF15 V0 Protecting cover:PA66-GF15 V0

            2、 Product main sub-part :

                               Automotive grade components: 750A fuse, 250A relay, Shunt,

                               pre-charge resistor, pre-charge relay,  PCB, connection terminal, Automotive grade                                       electronic components, etc.

            3、 Product dimension(mm):


            4、Product meets standards:

                            GMW3172、ISO 20653 IPXXB、 GMW 15862、 GMW 3059、 GMW 3191

            5、 Product process:

                               Injection molding 、Reflow soldering

            6、 Product application:

                               Battery disconnect unit

            7、Product packaging:

                               1 pcs per carton


                            Temperature rate:-40℃~85℃; Work voltage:144~575V ; Fast charging:                                     400A 20min、300A  40min

            9、Product feature:

                               Designed with fluid cooling
